PCB milling machine 4MILL300
Related products
Product detailed description

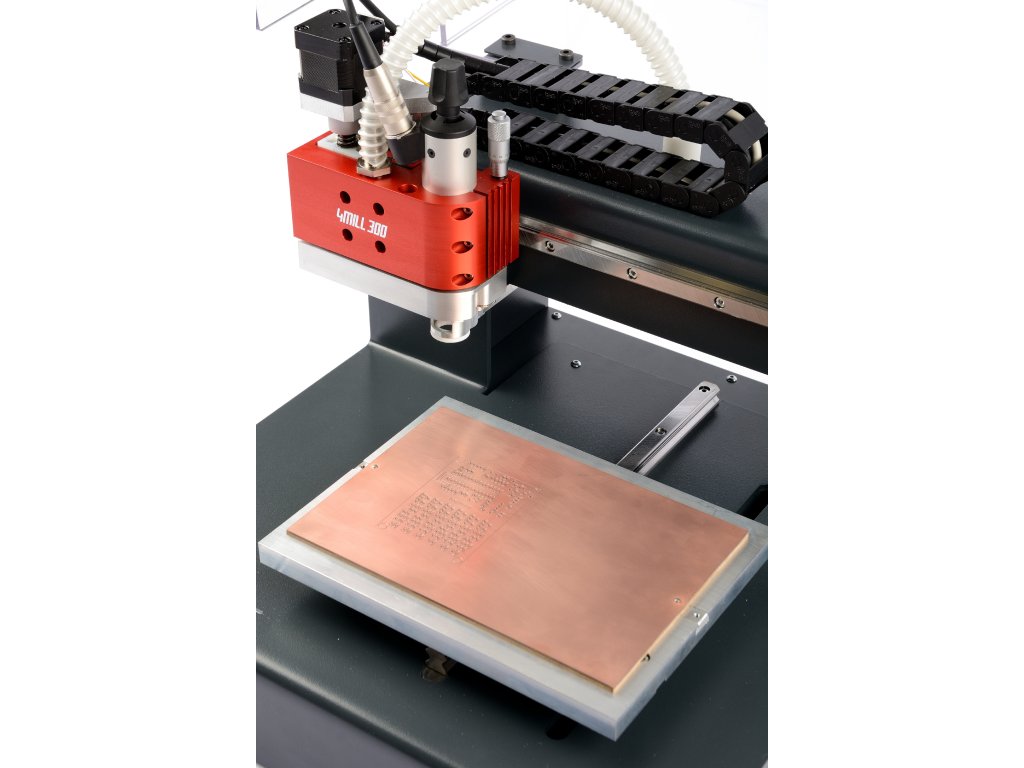

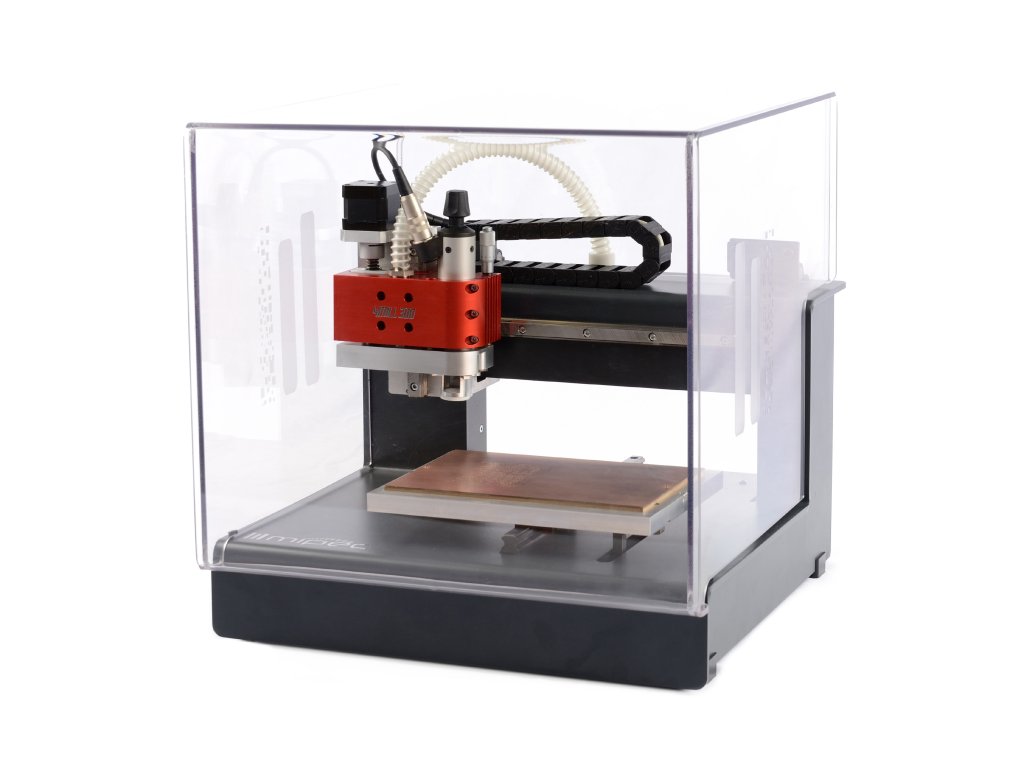

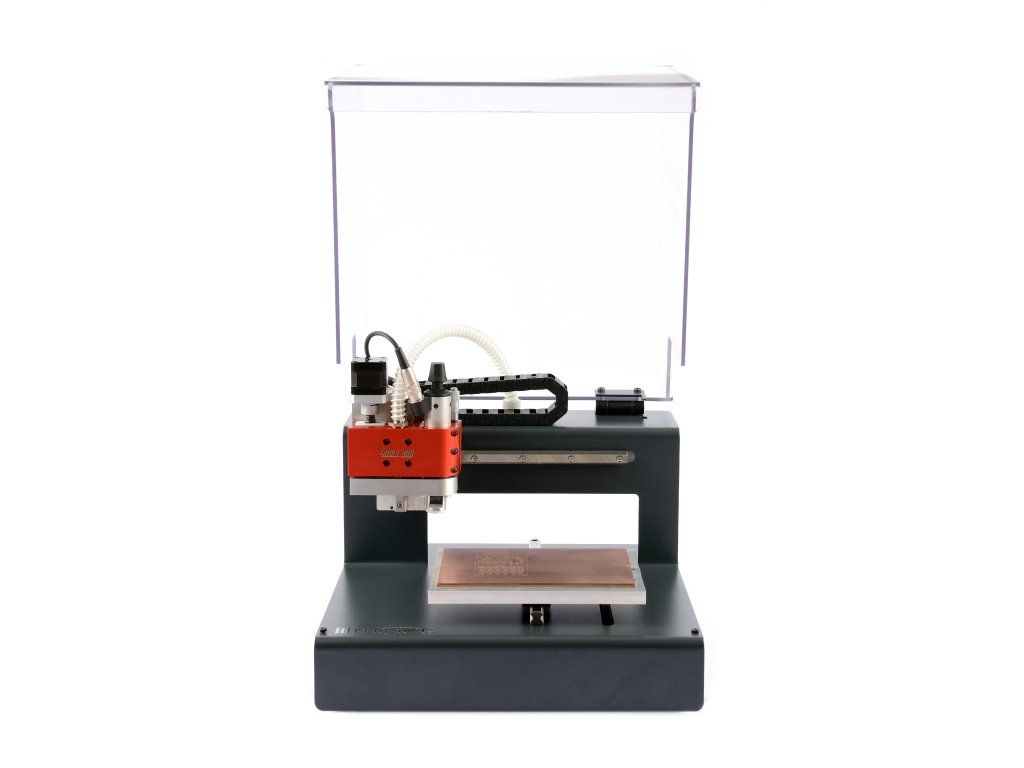

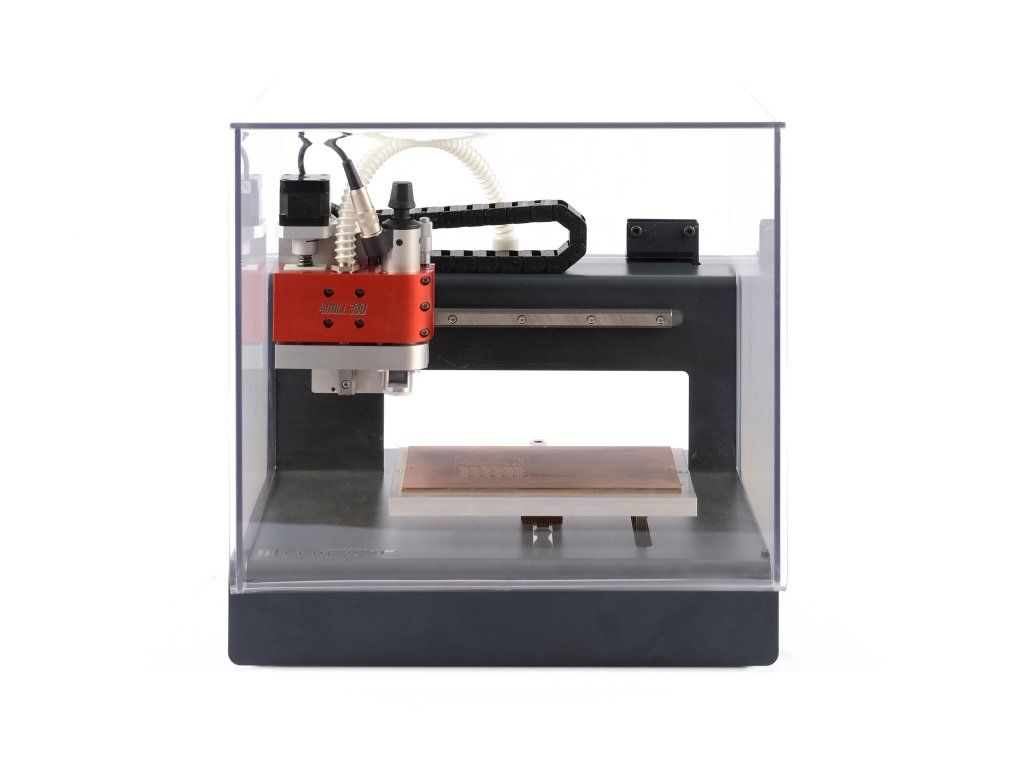

PCB milling machine 4MILL300 is a bench-top professional machine used as an ideal training solution for schools and universites as well as ideal machine for development and design laboratories for milling and drilling of their PCB prototypes. With 4MILL300 PCB milling machine you can mill and drill double-sided PCB’s and cut PCB outlines of any shapes. Thanks to its hi-precision leadscrews with antibacklash nuts and 60.000 RPM spindle motor in combination with solid 5 mm metal sheet chasis, the 4MILL300 can handle standard PCB designs with THT technology as well as SMD designs, antennas and various other applications. 4MILL300 can drill holes from 0,2 mm and mill conductive tracks or insulation paths with a width of 0,1 mm.
4MILL300 is the step into the world of Printed Circuit Board Prototyping in professional way. With the PCB milling machine 4MILL300 you can verify your PCB design in tens of minutes without messy and time consuming chemical management.
Applications
- Milling and drilling of single-sided PCB
- Milling and drilling of double-sided PCB
- Depaneling of PCB
- Engraving or cutting front pannels
- Machining of plastics, wood and other soft materials
TrackMaker software included
TrackMaker is professional, easy to use CAM and machine software for quick files processing and machining of your projects. it is all-in-one SW package for data import, editing, toolpaths calculation and machining. TrackMaker is compatible with all CAD packages using standard file format. TrackMaker is delivered with 4MILL300 machine. Always 1 license for 1 machine.
Complete package
for beginers on the field of PCB prototyping can be difficult to find correct tools for milling and drilling. That's why we prepared the starter set delivered together with machine. Starter set provide the most common tools and materials to be able to start with PCB milling right away.
| Universal cutter for 0,2 - 0,5 mm paths | 2 pcs |
| Micro cutter for 0,1 - 0,15 mm paths | 1 pcs |
| Contour router 2 mm | 1 pcs |
| End mill 1 mm | 1 pcs |
| Drill bit 0,6 mm | 1 pcs |
| Drill bit 0,8 mm | 1 pcs |
| Drill bit 1 mm | 1 pcs |
| Drill bit 1,5 mm | 1 pcs |
| Drill bit 3 mm | 1 pcs |
| Copper plates FR4, format A5, 2 sided | 5 pcs |
| Copper plates FR4, format A5, 1 sided | 5 pcs |
| Drill underlay material, format A5 | 2 pcs |
| Metal wool cleaning pad | 1 pcs |
Scope of delivery
PCB milling machine 4MILL300, strater set of tools and materials for PCB milling and drilling, USB disc with TrackMaker installation file and user manuals in pdf, printed installation manual, complete cabling and small present :-)
Additional parameters
| Category: | PCB milling machines |
|---|---|
| Max. PCB size: | 200 x 140mm |
| Milling spindle: | SW controlled brushless motor, max. 60.000RPM |
| Resolution: | 1μm |
| Repeatibility: | +/- 0.005mm |
| Tool holder: | 3,175mm |
| Milling depth adjustment: | μm precise depth adjustment |
| Drilling speed: | up to 120 strokes/min |
| Travel speed X/Y: | 40mm/s |
| X/Y/Z drives: | hybride motors |
| Machine table: | flat milled aluminium table with central T-slot |
| Dimensions: | W-420 x D-455 x H-435mm |
| Weight: | 40kg |
| Power supply: | 115/230V, 50-60Hz |
| Software: | TrackMaker, connection with PC by USB cable |
