Product detailed description

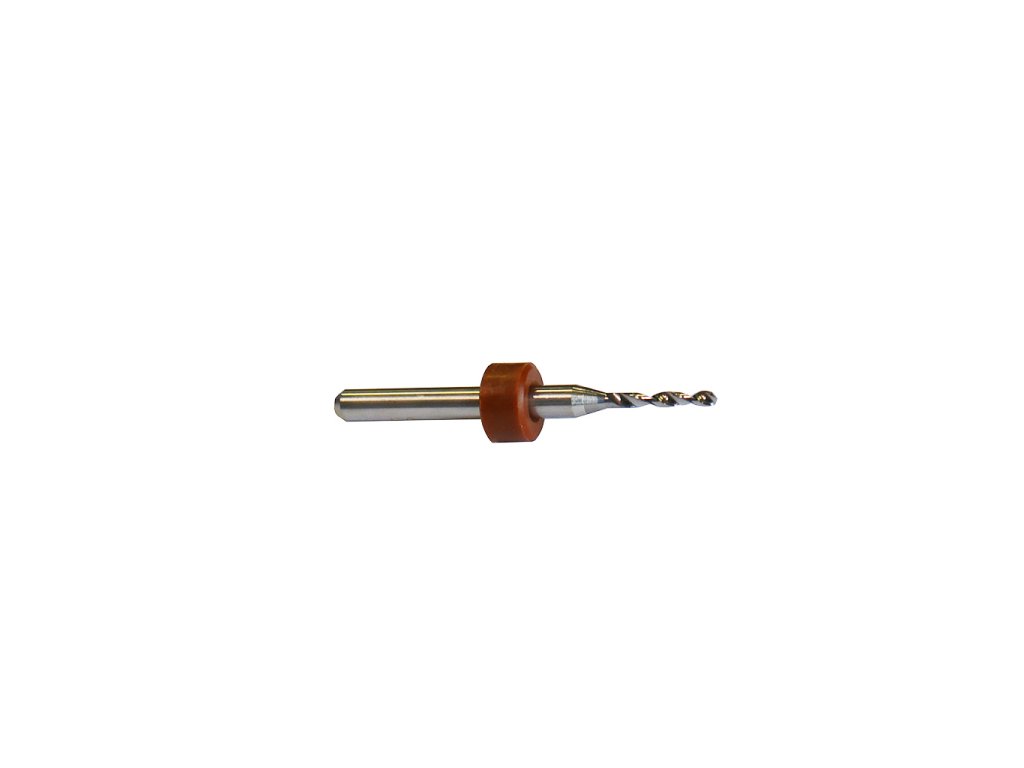

2,5mm PCB drill bit
Suitable for all standard PCBs made from FR4 base material.
Applications:
For all standard PCBs
Advantages:
Excellent hole wall quality.
High positional accuracy.
Efficient chip removal.
Parameters:
Total lenght: 38mm
Spiral lenght: 10,5mm
Tip angle: 130º
Shaft diameter: 3,175mm
Recomended machining parameters:
Spindle speed: 21000RPM
Feed rate: 1,7m/min
Chip load: 81µm/rev
Retraction: 20m/min
*Recomended machining parameters provide guidelines which acts as starting points for optimising speeds and feeds at the user's end.
Additional parameters
| Category: | PCB drill bits |
|---|---|
| Tool type: | Drill |
| Diameter: | 2,5mm |
