Copper clads
One of the most popular materials for printed circuit boards is FR4. MIPEC offers single-sided and double-sided FR4 pannels formated for MIPEC 4MILL machines, but different formats can be delivered on request. There is also special drill underlay material with no resins offered. This underlay material protects the machine bed but also prolong the drilling tools life-time.
Standard FR4 single-sided copper clad with 1,55mm thickness and dimensions of 150 x 220mm. Copper thickness is 18 micrometers.

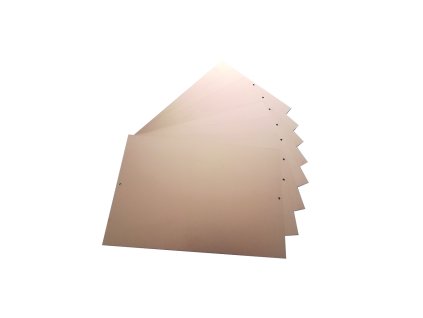

Standard FR4 double-sided copper clad with 1,55mm thickness and dimensions of 150 x 220mm. Copper thickness is 18 micrometers.
Standard FR4 single-sided copper clad with 1,55mm thickness and dimensions of 150 x 220mm. Copper thickness is 35 micrometers.
Standard FR4 single-sided copper clad with 1,55mm thickness and dimensions of 150 x 220mm. Copper thickness is 35 micrometers.
Standard FR4 double-sided copper clad with 1,55mm thickness and dimensions of 150 x 220mm. Copper thickness is 35 micrometers.
Standard FR4 double-sided copper clad with 1,55mm thickness and dimensions of 150 x 220mm. Copper thickness is 35 micrometers.
Special drill undelay material with no resin contain protects drills and cutters when penetrate the the copper clads. Drill undelay material is lamitad by white foil on both...
